25BAR stainless steel pressurized water supply pressure tank secondary water supply bladder type air pressure tank

The ultraFlow series is a high-quality bladder pressure tank manufactured by Global Water Solutions China factory. From design to production, it fully implements DIRECTIVE 2014/68/EU OF THE EUROPEAN PARLIMENT AND OF THE COUNCIL Pressure Equipment Directive. Technical standard implementation EN13831:2007.

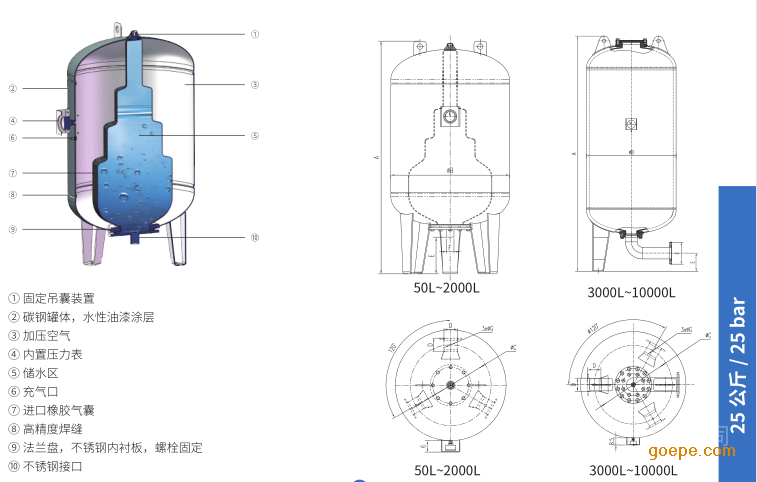

SuperFlow pressure tanks are ideal for applications with high pressure levels, including high-rise buildings (residential or office buildings, etc.) and multi-storey buildings (hotels, hospitals or schools, etc.). Available in volumes ranging from 50L to 10000L, it is one of the most comprehensive products in the world. The SuperFlow series features a replaceable bladder design that allows you to replace the internal rubber bladder at any time; all products above 100L have a built-in pressure gauge that allows easy control of system pressure, and you only need to check the priming pressure every 6 months.


Brand Origin

Global Water Solutions Ltd. (GWS) |Qingdao, China·

texture

• Tank material: carbon steel
• Interface material: 304 stainless steel
• Core components: imported rubber airbag

parameter

• Volume range: 50~10000L
• Operating temperature: -10 C~90 C
• Precharge pressure: 4.0 bar
• Interface size: 1/1¼/2/2½“
• Installation mode: vertical
• * High working pressure: 25bar

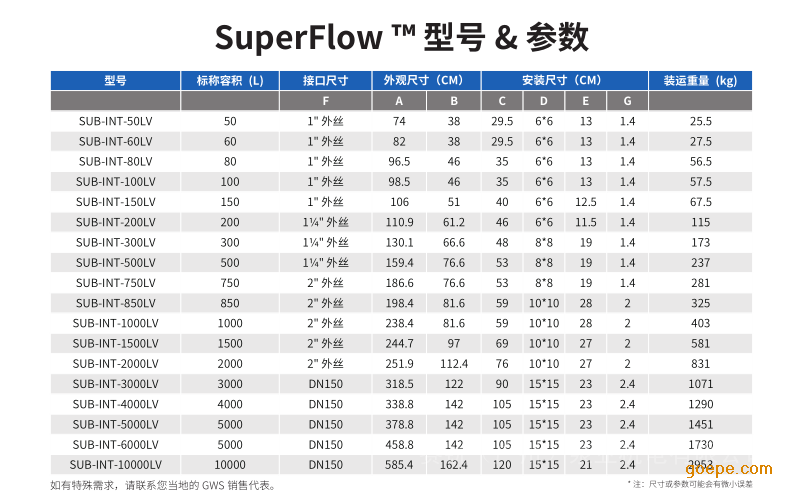

• SuperFlow Series

  25bar

  Recommended application: Water supply pressurization

  50~10000L
